JBETT TE-20L Vertical Solvent Recovery Machine - Explosion-Proof PLC Control Industrial Solvent Recycler
Product Introduction
Core Selling Points
✅ Explosion-Proof Design: The whole machine adopts explosion-proof structure, suitable for flammable and explosive solvent recovery scenarios, complying with industrial safety standards.
✅ Intelligent & Easy Operation: Equipped with PLC control system and Chinese-English human-machine interface, supports timed/constant temperature shutdown, over-temperature/over-pressure automatic alarm shutdown, easy to operate.
✅ Energy-Saving & Efficient: Max heating power 2KW, 220V power supply, average recovery time 2-2.5 hours, daily processing capacity 20-60L (12H), greatly reduce solvent purchase costs.
✅ Customizable & Flexible: Supports feed capacity ≥20L, host size 8506001200mm, customizable functions to meet different industry needs, compatible with multiple types of solvents.
✅ Durable & Reliable: High-quality stainless steel body, about 100KG weight, with mobile wheels at the bottom, suitable for chemical, spraying, printing and other industries.
Application Scenarios: Auto parts spraying, furniture painting, hardware electrostatic spraying, plastic coating, aluminum veneer spraying. Recyclable Solvents: Gun cleaning thinner, xylene, butyl acetate, acet-one, tol-uene and all common spraying organic solvents.
Technical Specifications
| Specification |
Unit |
Technical Data |
| Main unit model |
- |
TE-20 |
| Explosion-proof Grade |
- |
ExdbIIBT3/T4Gb |
| Feed Capacity |
L |
≤18 |
| Maximum Heating Power |
kW |
2 kW |
| Power Supply |
V/Hz |
220V (customizable for 50/60Hz) |
| Average Processing Time |
h |
2 (continuous 24h operation supported) |
| Weight |
kg |
≈100 |
| Overall Dimensions (L×W×H) |
mm |
850*600*1200 |
| Required Floor Space (L×W×H) |
m |
3×3×3 |
| Daily Output (12h) |
L |
20-60L |
| Cooling Method |
- |
Air-cooled / Water-cooled |
| Certifications |
- |
CE/EX |
| Control System |
- |
PLC Control |
| Recovery Efficiency |
(%) |
95 |
Workflow
Waste Collection → Automatic Feeding → Sealed Distillation → Condensation Purification → Clean Solvent Output → Reuse. Fully sealed design, no volatilization & no odor.
Applicable Industries
Chemical Industry: Recovery and reuse of various organic solvents and chemical waste liquids;
Spraying & Printing Industry: Recovery of ink and paint solvents, reduce consumable loss;
Semiconductor & New Materials Industry: Recovery of high-value solvents, improve resource utilization;
Environmental Protection & New Energy Industry: Suitable for new energy materials and environmental protection solvent recovery scenarios.
After-Sales Service
Official direct supply, support ODM/OEM customized services;
Professional installation guidance, operation training and after-sales technical support provided;
Quality assurance, strict factory inspection, worry-free fault maintenance during the warranty period.
Before and After Waste Solvent Recycling

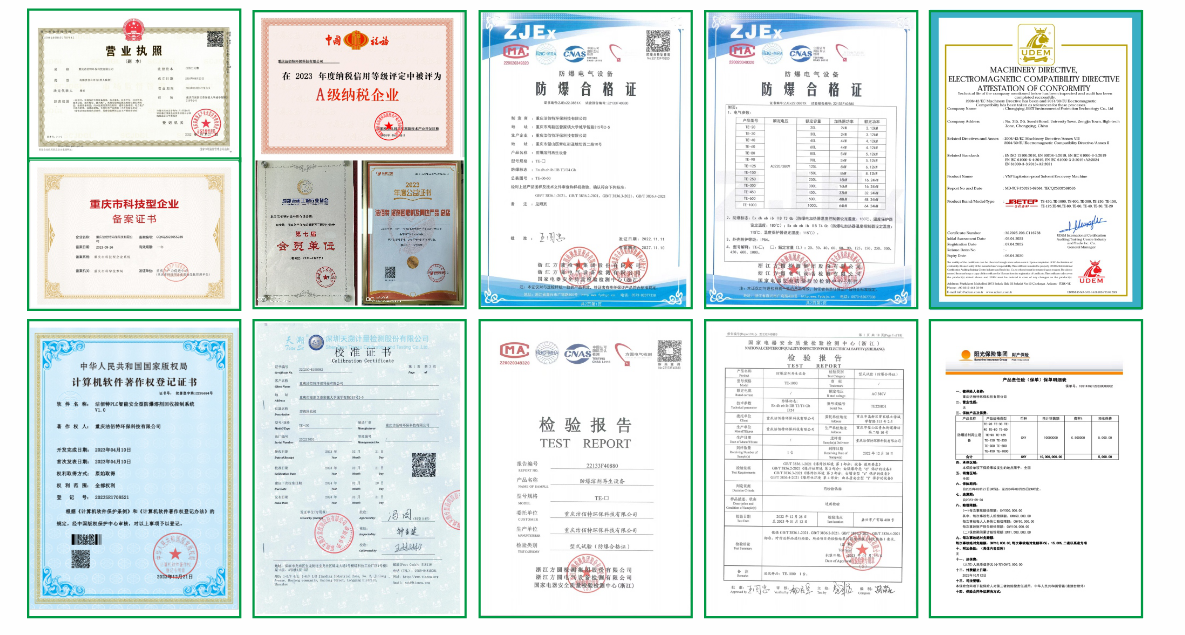

Qualifications
Packaging & Shipping
Packaging:
- Wooden boxes are used for outer packaging;
- Neutral packaging or customized packaging can be provided.
Shipping:
-We can transport goods for you through international express (such as DHL/UPS/TNT, etc.).
You can choose a reasonable transportation method according to your time and budget. In addition,
You can also choose to use your own shipping agent.
| Shipping method |
Note |
| Express |
Door to door, very convenient, don't need to clearance or pick-up |
| By air |
Airport to an airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea |
Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
Pre-sale Service:
--24 Hours online service for your consultation.
--Help choose right model, and a series of services, people, and advice.
--Give you the best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convenient.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
After-sales service:
-- One-year warranty, lifelong technical support.
-- Overseas training for technical engineers can be provided.
-- Remote control technical consultation is provided.
-- Maintenance plan is provided.
FAQ
Q1: What's the minimum order quantity?
A: At present, the minimum order quantity is one set.
Q2: What kind of payment terms do you accept?
A: Normally, we accept T/T (Telegraphic Transfer).
Q3: How will you deliver these goods?
A: The delivery method will be decided according to your order quantity. Normally, we choose international express, air freight, or sea freight.
Q4: How to choose suitable equipment?
A: You can tell us your specific requirements (such as capacity, temperature range, pressure, etc.), and we will recommend the most suitable equipment for you.
